EarthQuaker Devices Chelsea Low End Fuzz Driver
- Unit price
- / per
With only three controls, this deceptively powerful pedal offers you everything from light overdrive to full on distortion with clarity and blissful grinding. A Tone On/Off switch allows you remove the Tone control from the circuit, opening up a whole new world of midrange grind. Switch it off for a simplified and straightforward attack or leave it on for a full-bodied distortion with loads of low-end with a slight natural scoop. Roll up the Sustain for wall-shaking bass notes or sustaining lead and adjust the Tone for a wild and wide frequency response from aggressive top end to low-end rumble.
This particular pedal really does have something special. It’s heavy without being too heavy, clean but not too clean. A simple set of controls yet it has an expansive array of tones that makes it very versatile on a wide variety of instruments. It has clarity when you need it and can blur all discernible lines when you don’t. It still retains the familiar foundation of the classic fuzz it was intended to be but something special happened to it over the years and it has very much grown into its own thing.
I’m going to guess that you have heard this pedal. It has been the chosen bass fuzz for several LCD recordings and has traveled around the world with them. I’d say that it is a prized possession, a real one-of-a-kind pedal. It has been beat up and taped back together. It looks like it shouldn’t work but it always delivers. It is old, it is fragile, and it sounds massive.
Named after the guitar shop in which it was purchased back in 1989, the Chelsea recreates all the idiosyncrasies of the original but without the threat of total collapse. Each Chelsea is handmade at EarthQuaker Devices headquarters in always sunny Akron, Ohio, USA by a bunch of pretty nice humans and one big robot.

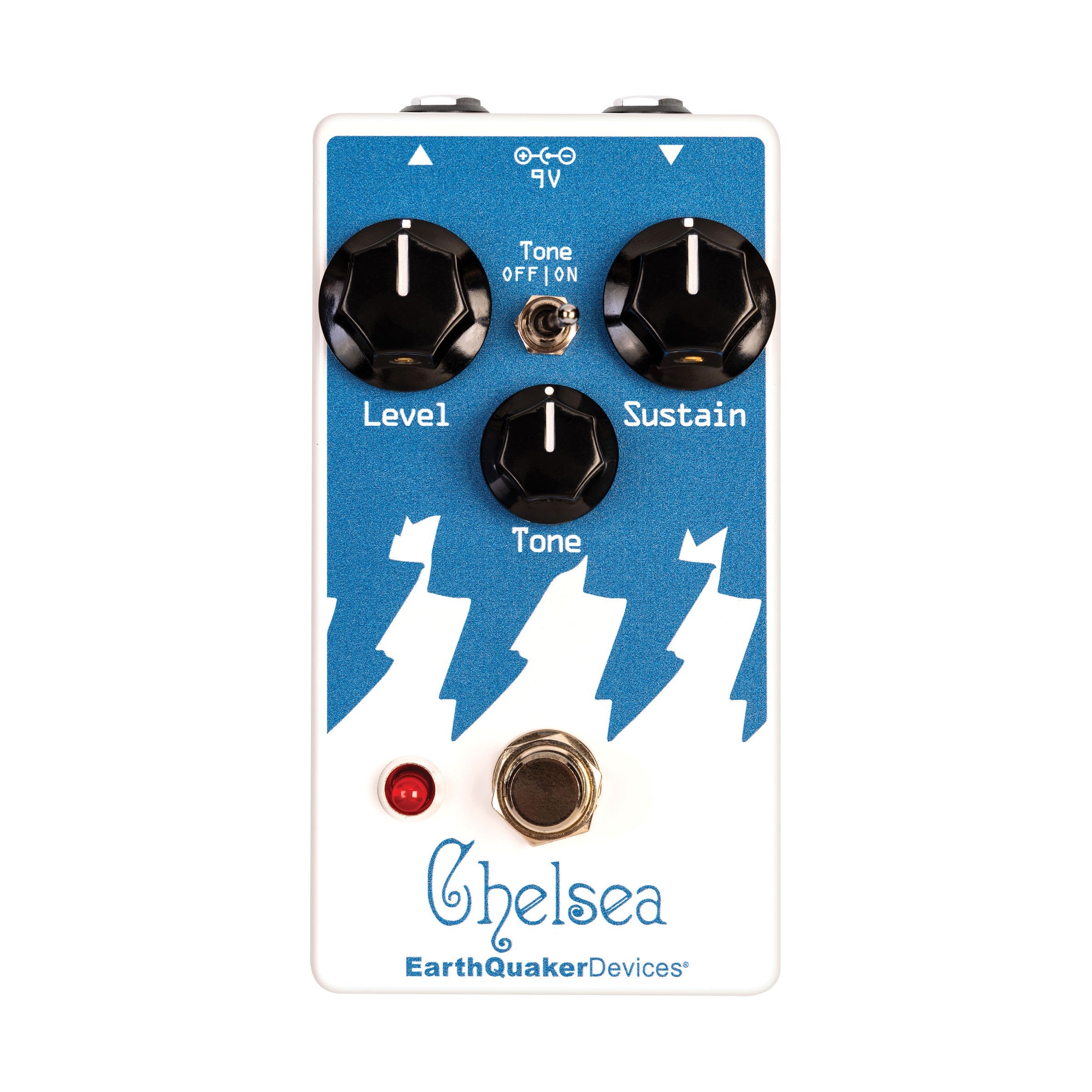

Controls
- Sustain: Adjusts the amount of distortion and sustain.
- Tone: Use this to fine tune the frequency response. Boost treble by turning clockwise, boost bass and tame the top end by turning counterclockwise.
- Tone On/Off: This switch bypasses the tone control and delivers a more mid focused response.
- Level: Controls the output volume.
Tech Specs
-
Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
- Current Draw: 10 mA
- Input Impedance: 50 kΩ
- Output Impedance: <10 kΩ
- Switching: This device uses relay-based true bypass switching; it requires power to pass signal.
- Power: This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
